Transmission Line Stringing Equipment 2x70KN Hydraulic Wheel Tensioner

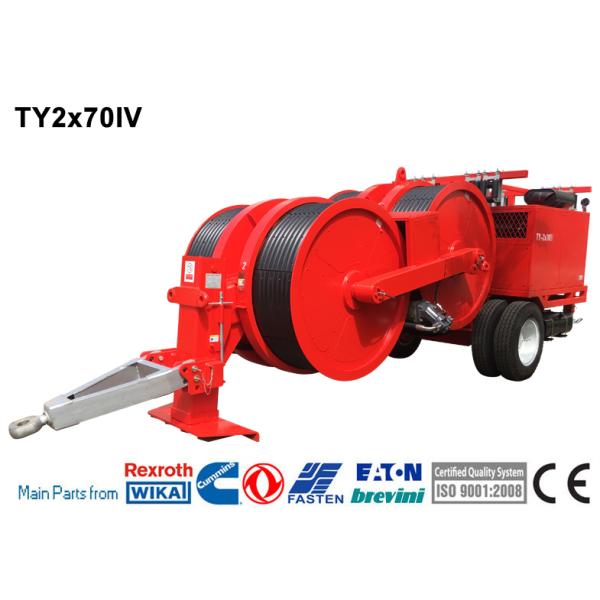

TY2x70IV Hydraulic Tensioner
The machine allows for the tension stringing of four-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics
Bull-wheel diameter: 1500mm
Max conductor diameter: 40mm
Groove number: 2x8
Total weight: 12000kg
Overall dimension (length*width*height):5500*2280*2700mm
Performance
Max intermittent tension: 2x70/1x140kN
Max continuous tension: 2x65/1x130kN
Speed at max tension: 2.5km/h
Max speed: 5km/h
Pull at max speed: 2x25/1x50kN
Max reverse pulling force: 2*60kN/1*120kN
Max reverse pulling speed: 5km/h
Configuration
2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter and speed counters
Control instruments for hydraulic system and diesel engine
Hydraulic front stabilizer
Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor
Grounding connection point
Additional Devices
Lighting system for the trailer
4 hydraulic rope/conductor clamp (extra charge)
Swivel guide rope roller
Air brake system for the trailer (extra charge)
Digital Speed and meter counter
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
| Main configuration |
| Engine: Cummins |
| Hydraulic pump: German Rexroth/Dnish Danfoss |
| Main motor:German Rexroth/French Leduc |
| Speed reducer: German Rexroth / Italy Bonfiglioli |
| Main hydraulic valves: USA Sun / Italy ATOS |
| |
| Engine |
| Diesel: 77kw(103hp) |
| Cooling system: water |
| Electrical system: 24V |
Product Tags:
|
|

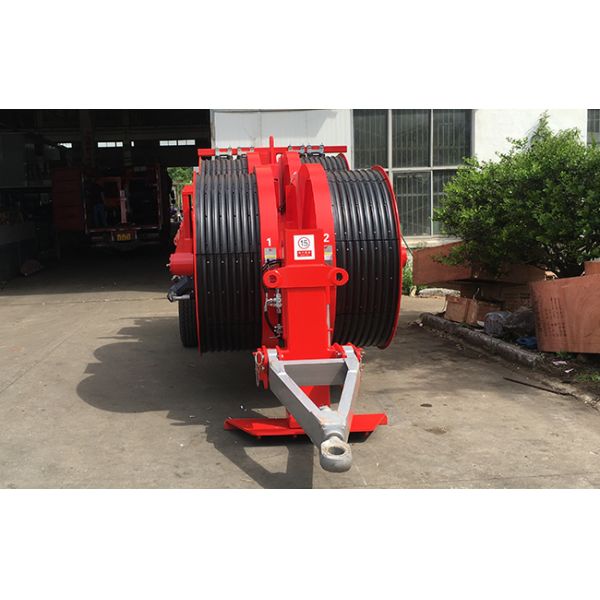

Transmission Line Stringing Equipment 2x70KN Hydraulic Wheel Tensioner Images
|
