Overhead Transmission Hydraulic Max Tension2x70/1x140kN Cable Tensioner

  • 1
  • 2

Brand Name : HANYU

Model Number : TY2x70IV

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD94,000-97,000/set

Payment Terms : L/C, T/T

Supply Ability : 10Sets/Month

Delivery Time : 15-35days

Packaging Details : Container

Type : Hydraulic Cable Tensioner

Diesel : 77kw(103hp)

Max conductor diameter : 40mm

Electrical system : 24V

Groove number : 2x8

Max intermittent tension : 2x70/1x140kN

Contact Now

Overhead Transmission Hydraulic 2x70/1x140kN Cable Tensioner

Performance
  1. Max intermittent tension: 2x70/1x140kN
  2. Max continuous tension: 2x65/1x130kN
  3. Max reverse pulling force: 2*60kN/1*120kN
  4. Max speed: 5km/h
  5. Max reverse pulling speed: 5km/h
  6. Speed at max tension: 2.5km/h
  7. Pull at max speed: 2x25/1x50kN

Characteristics
  1. Max conductor diameter: 40mm
  2. Bull-wheel diameter: 1500mm
  3. Groove number: 2x8
  4. Overall dimension (length*width*height):5500*2280*2700mm
  5. Total weight: 12000kg

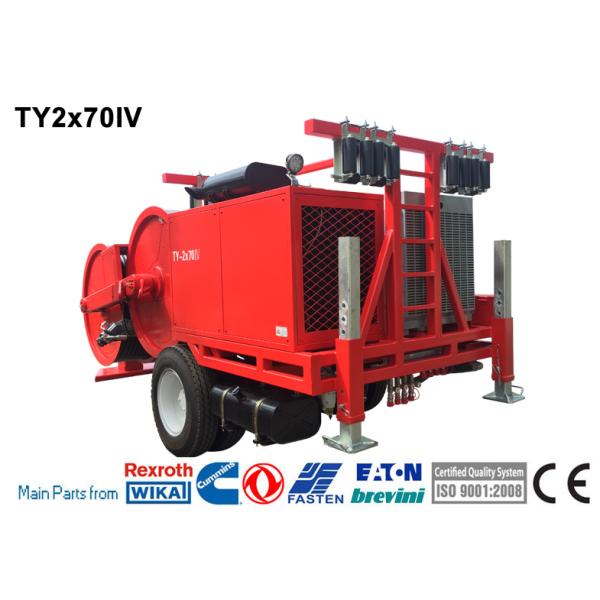

TY2x70IV Hydraulic Tensioner
  • The machine allows for the tension stringing of four-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Engine
  1. Diesel: 77kw(103hp)
  2. Electrical system: 24V
  3. Cooling system: water

Main configuration
  1. Speed reducer: German Rexroth / Italy Bonfiglioli
  2. Hydraulic pump: German Rexroth/Dnish Danfoss
  3. Main hydraulic valves: USA Sun / Italy ATOS
  4. Engine: Cummins
  5. Main motor:German Rexroth/French Leduc

Configuration
  • 2 negative self-acting hydraulic brakes
  • 2 digital meter and speed counters
  • Grounding connection point
  • Hydraulic front stabilizer
  • 2 hydraulic dynamometers
  • Hydraulic oil cooling system
  • Control instruments for hydraulic system and diesel engine
  • Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor

Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.

Additional Devices
  • Air brake system for the trailer (extra charge)
  • Digital Speed and meter counter
  • Lighting system for the trailer
  • Swivel guide rope roller
  • 4 hydraulic rope/conductor clamp (extra charge)
