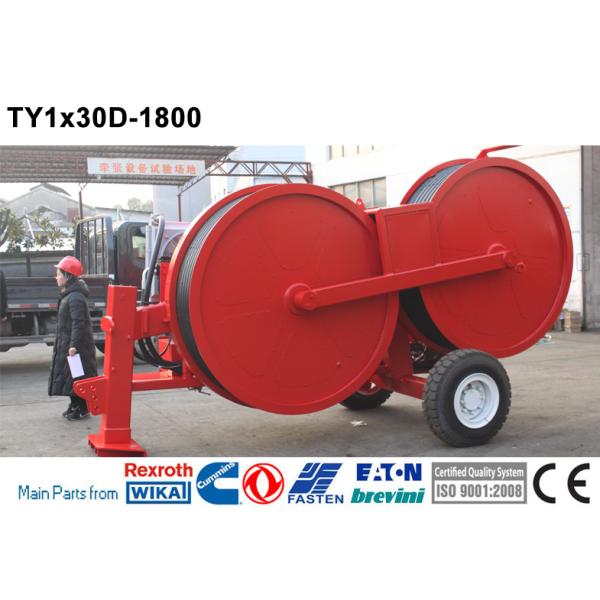

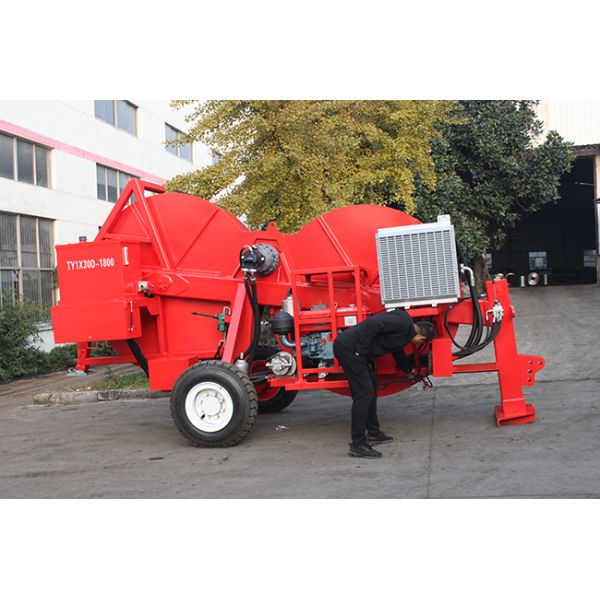

Transmission Line Stringing Equipment TY1x30D-1800 Hydraulic Brake Tensioner

TY1x30D-1800 Hydraulic Tensioner with diesel engine

• The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.

• The hydraulic power unit provides the traction of conductors at both positive and negative directions.

• The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.

• Max continuous tension: 30kN
• Speed at max tension: 2.5km/h
• Max speed: 5km/h
• Pull at max speed: 15kN
• Max reverse pulling force: 20kN

• Single cylinder diesel engine 18kw(25hp)
• Electrical system 12V

• Engine: Changchai China
• Hydraulic pump: German Concentric
• Main motor: French Leduc
• Speed reducer: German Rexroth / Italy Bonfiglioli
• Hydraulic valve: German Rexroth
• Hydraulic meter: German WIKA

• Bull-wheel diameter: 1800mm
• Max conductor diameter: 40mm
• Groove number: 5
• Total weight: 4600kg
• Overall dimension (length*width*height): 5000*2000*2600mm

Hydraulic Transmission

• The machine can realize step less speed
• The machine is provided with tension presetting system

• Hydraulic dynamometers
• Hydraulic oil cooling system
• Grounding connection point

• Air brake system for the trailer (extra charge)
• Hydraulic conductor clamps for drum change operations (extra charge)
• Swivel guide rope roller
• Trailer for towing at max speed of 15 km/h
